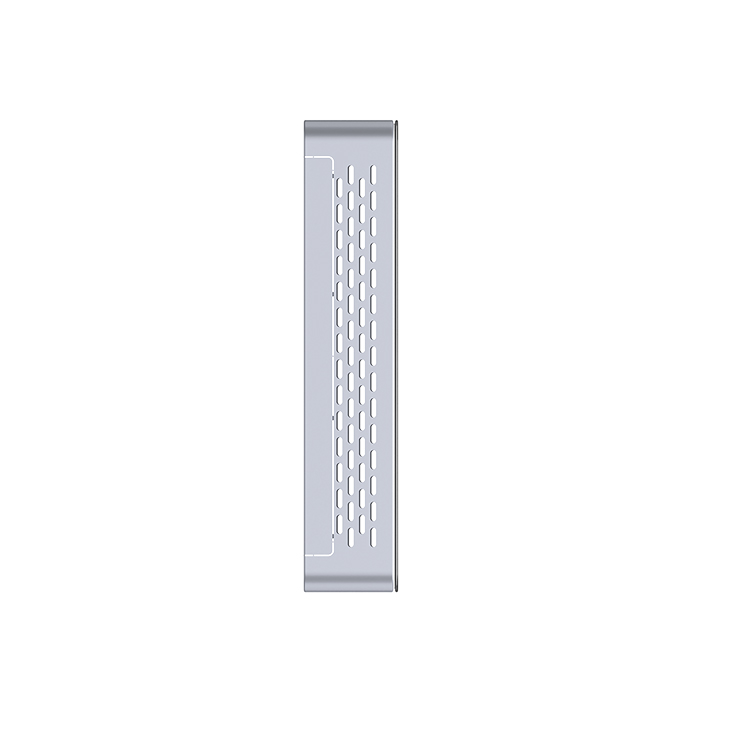

TS-420420 Drive box DRIVE BOX SERIES

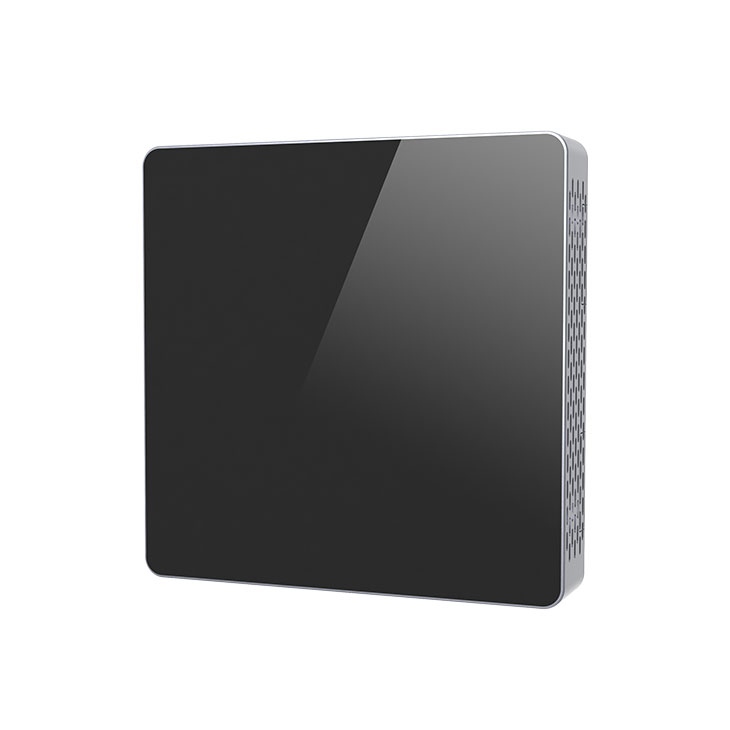

● Product Introduction The emergence of the drive box has changed the old chaotic light bend drive. From then on , wire messy and inaesthetic layout inside box had been gone, so that the whole space inside restored nest and aesthetic
  • ModelTS-420420
  • Front cover size420(h) X 420(w) X 84(d)mm
  • Backbox size420(h) X 420(w) X 4(d)mm

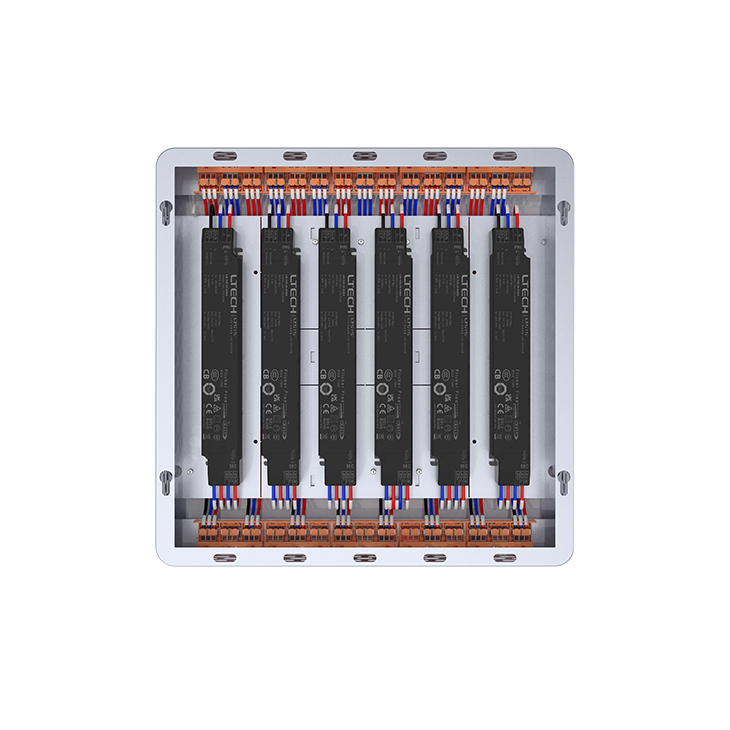

  • Drive size250 X 40mm(* This drive box can hold 6 devices)
  • Product seriesDRIVE BOX SERIES ( surface mounted)

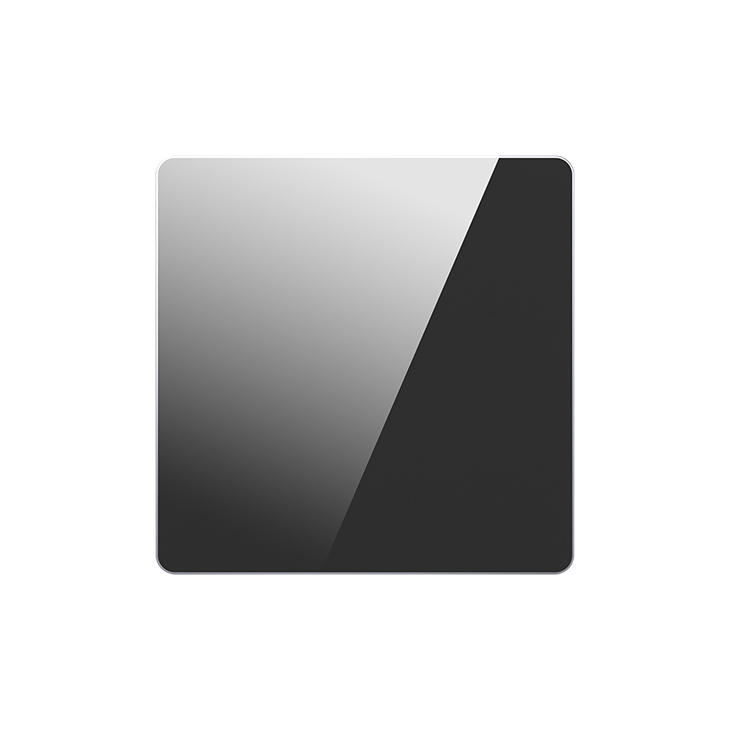

  • Optional front coverBlack tempered glass
  • Steel plate thickness1.0mm
  • Product materialTempered glass panel; Cold rolled steel box; DIN rails, hinges
〇 Installation diagram

Installation Diagram(surface mounted)

( take TS-2-b for example)

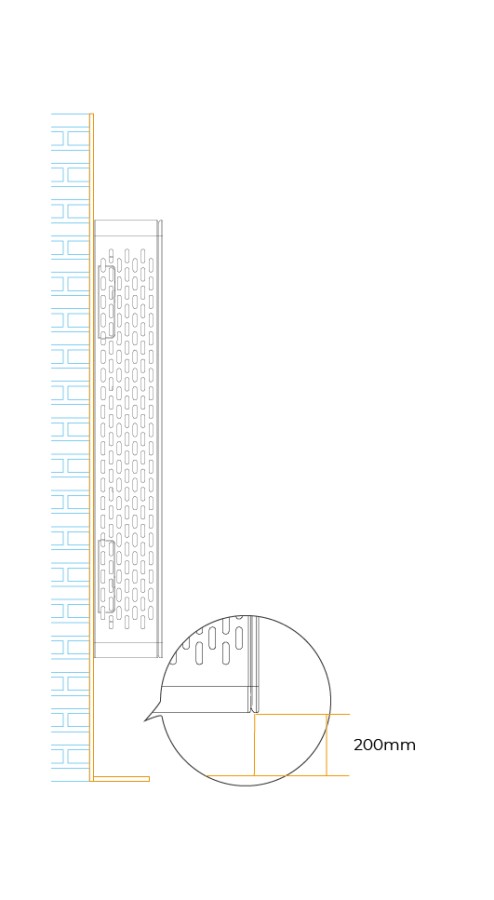

When the box is installed on the wall by surface mounting installation, in order to ensure the convenience of maintenance and overhauling, it is recommended to reserve at least 200mm gap space between the bottom of the box and the ground, this design will greatly facilitate the subsequent maintenance and fault checking of the box

（Click image to enlarge）

Installation Diagram(surface mounted)

Installation Diagram(surface mounted)

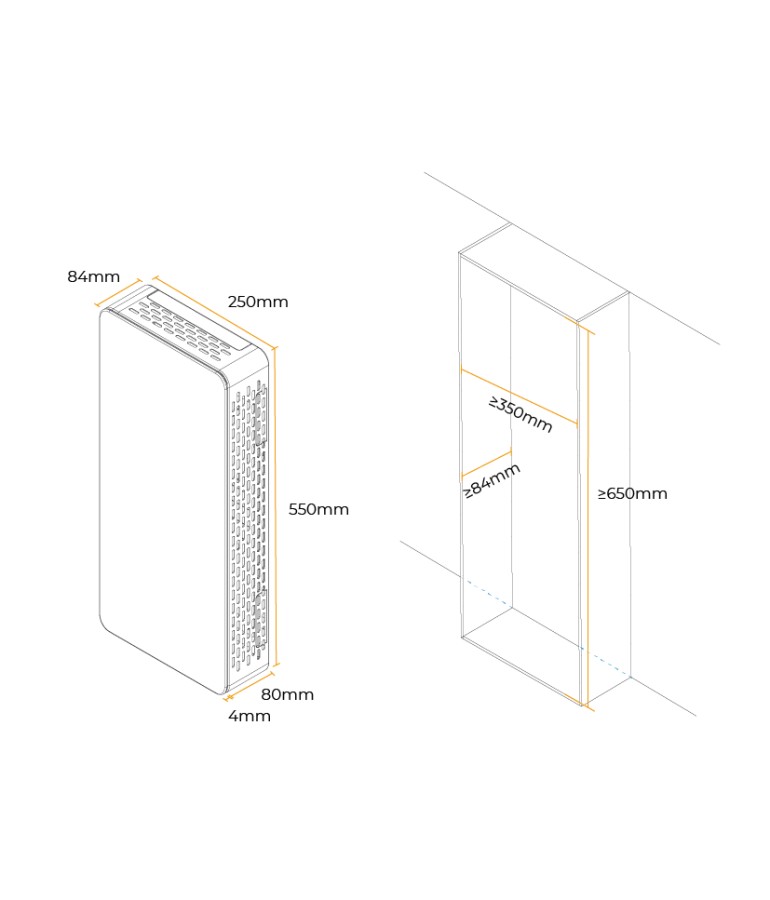

If you need the front cover surface to be aligned with the exterior adorn surface, the minimum 84mm depth of the wardrobe inside should be reserved .

Recommended size: depth >84mm, width >350mm, height >650mm

（Click image to enlarge）

Installation Diagram(surface mounted)
